Description
Our cutting-edge 730nm IR Illuminator, designed specifically for near-IR sensitive cameras, ensuring optimal visibility in low-light conditions. Unleash the power of infrared technology with a versatile solution that meets the needs of various applications.
Key Features:
- Near-IR Compatibility: Tailored for near-IR sensitive cameras, our illuminator guarantees exceptional performance in low-light environments, capturing clear and detailed images.
- Wavelength Options: Experience flexibility with a range of available wavelengths, allowing you to customize the illuminator to suit your specific requirements.
- Self-Driven or External Driver: Choose between self-driven operation or compatibility with an external driver. This dual functionality prevents whiteouts, ensuring high resolution and accurate fish discrimination.
- IP69 Submersible Camera: Encased in a heat-sunk die-cast enclosure, our illuminator is not only rugged but also submersible up to IP69 standards. Trust in its durability and resilience even in challenging conditions.
- Plug-and-Play Convenience: Enjoy hassle-free installation with a standard 5m cable featuring stripped ends. Simply plug into our self-locking terminal blocks on compatible drivers, and you’re ready to go.
- Angle Adjustable: Achieve precision with adjustable pitch and yaw, especially when used with our WMD-compatible mounting plate. Fine-tune the lighting angle for optimal coverage.
- Ideal Pairing for Diffuse Lighting: Maximize the potential of your setup by using our illuminators in pairs. Create diffuse, multi-directional lighting that eliminates shadows and casts a consistent glow onto images, ensuring unparalleled clarity.
Illuminate your vision with our 730nm IR Illuminator – a dependable choice for professionals seeking top-tier performance in near-infrared applications. Whether it’s surveillance, wildlife observation, or any low-light scenario, trust in our illuminator to bring visibility to the unseen.
Revised IR 730nm Lamp Series
| Name | LEDs | Wattage | Driver | Key Features | Price (GBP) | |
|---|---|---|---|---|---|---|
| IR-730-Pro | 9 LEDs | 10W (fixed) | External only | IP69, high-intensity flood | £380 | |
| IR-730-Flex | 9 LEDs | 10W (max) | Internal + WMD 48V | Long-range dimming, industrial | £420 | |
| IR-730-Eco | 9 LEDs | 9W (fixed) | External only | Compact, budget IP69 | £350 | |

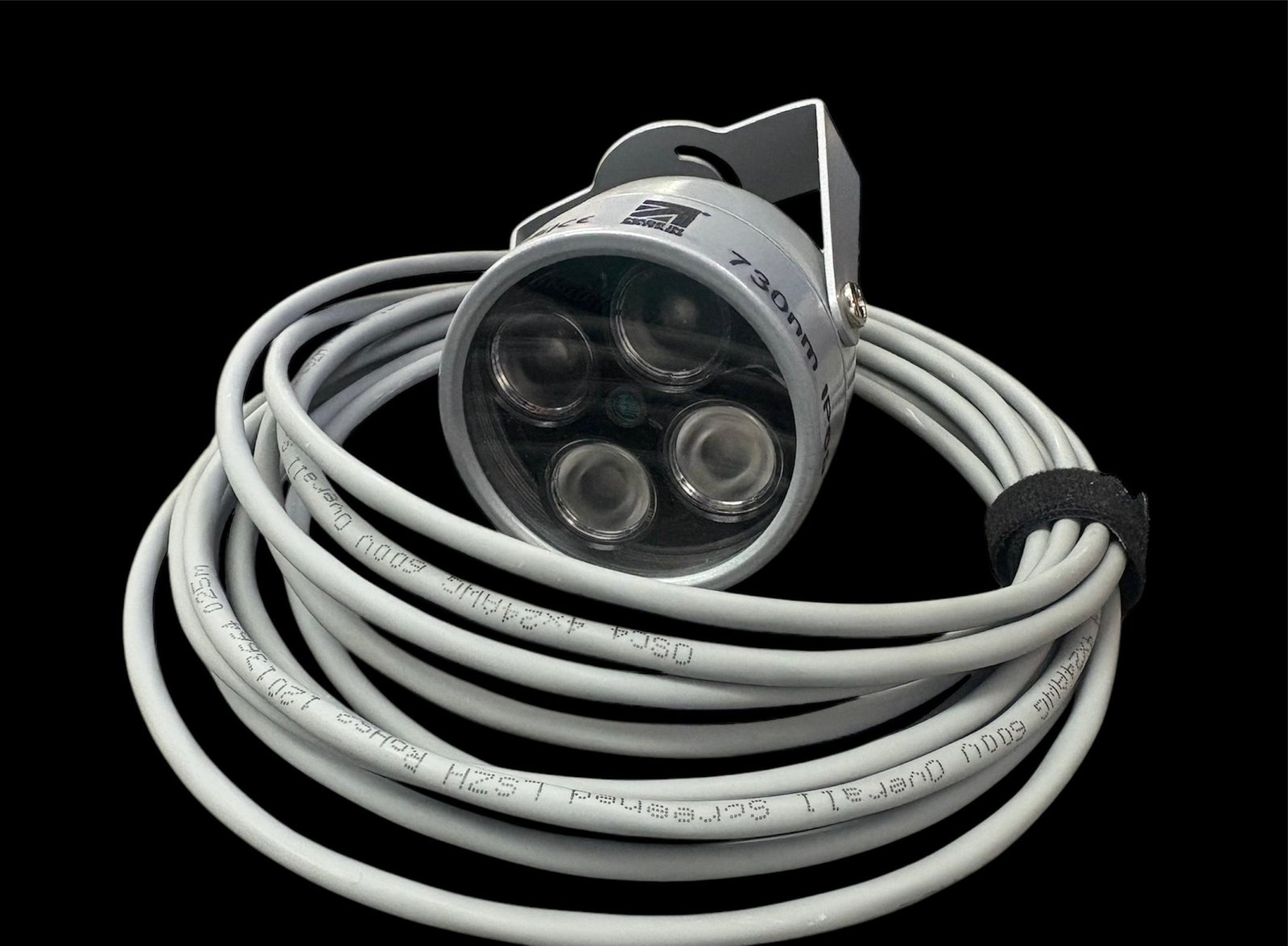

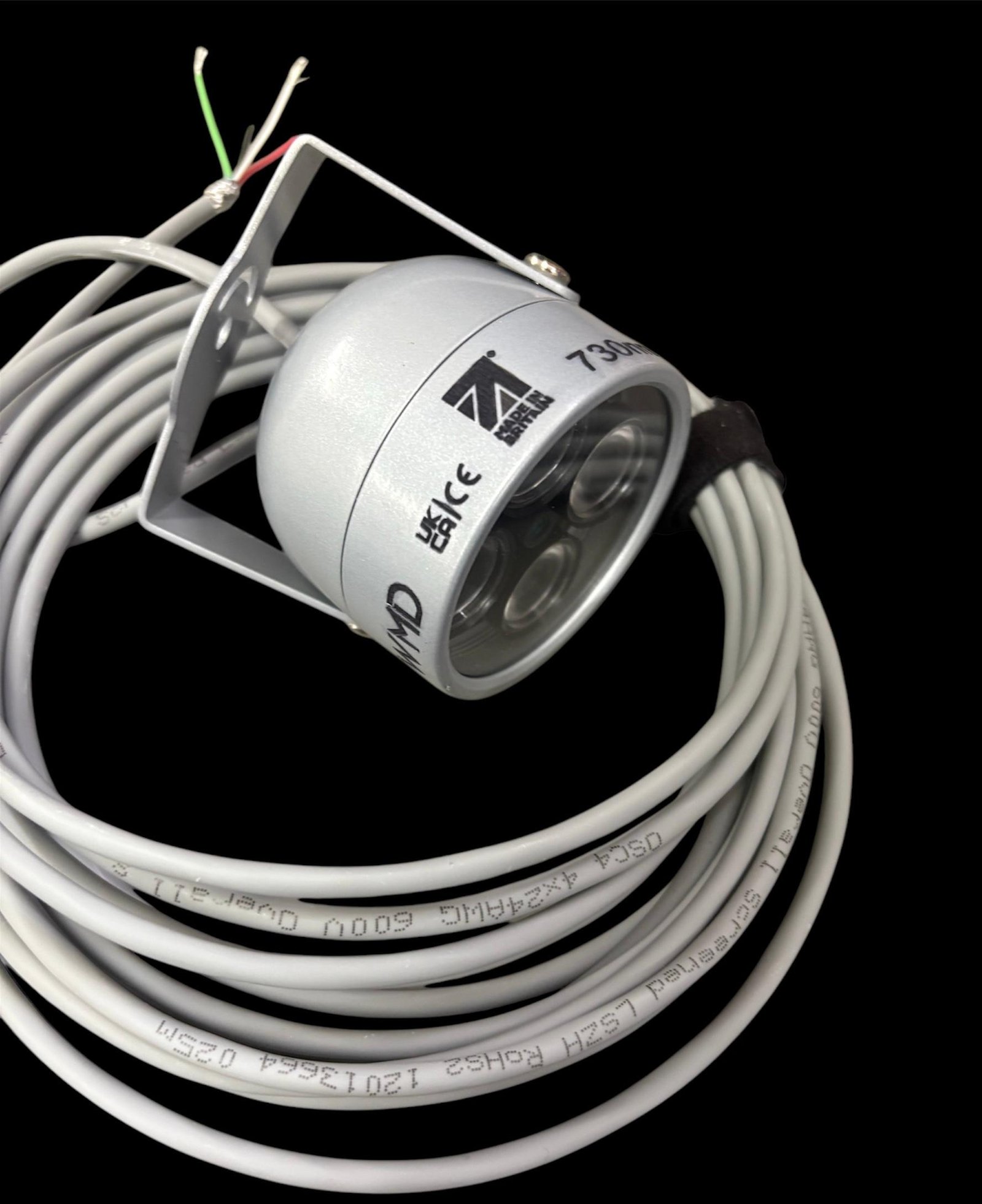

| IR-730-Guard | 4 LEDs | 7W max (self-driven) | Internal 12-24V | Lenses, dusk/dawn, IP68 | £330 | |
| IR-730-GuardX | 4 LEDs | 7W (internal) / 9W (external driver) | Hybrid (WMD 48V) | Overdrive capable, lenses, IP68 | £350 |
Color black or grey will be sent inline with stock levels
Why 730nm Infrared is Ideal for Nighttime Water Penetration & Fish Monitoring
1. Optimal Water Penetration
Infrared light at 730nm (near-infrared, NIR) strikes a critical balance for underwater visibility:
- Minimal Absorption: Water absorbs less NIR compared to visible light (e.g., red/blue wavelengths scatter quickly).
- Reduced Scattering: Longer wavelengths (like 730nm) penetrate turbid water better than shorter IR (e.g., 850nm), which is critical for murky rivers or estuaries.
- Algae Resistance: Unlike green/blue light (which algae absorbs), 730nm avoids stimulating phytoplankton growth, keeping images clearer.
2. Fish-Friendly & Stealthy
- Invisible to Most Fish: Fish retinas are sensitive to shorter wavelengths (UV to ~650nm). 730nm is virtually undetectable, avoiding behavioral disruption.
- No Spook Effect: Unlike white or red light (used in some systems), 730nm doesn’t trigger avoidance in species like salmon or trout.
3. Enhanced Imaging for Fish Identification
- High Contrast: 730nm reflects differently off fish scales/gills vs. water, improving contrast in IR cameras (e.g., for counting or species ID).
- Compatibility with Sensors: Most low-light CCD/CMOS cameras (e.g., Sony Starvis) are highly sensitive to 730nm, enabling crisp footage without visible glare.
4. Practical Advantages
- Energy Efficiency: 730nm LEDs require less power than visible light for equivalent illumination range.
- Regulatory Compliance: Meets wildlife protection guidelines (no visible disturbance, unlike 850nm’s faint red glow).
Use Cases in Aquatic Systems
- Fish Pass Monitoring: Count migratory fish (e.g., eels, salmon) without altering behavior.
- Sluice/Gate Surveillance: Track debris and fish movements in real-time.
- Research & Conservation: Study nocturnal species without light pollution.
Comparison to Other Wavelengths
| Wavelength | Water Penetration | Fish Visibility | Camera Compatibility |
|---|---|---|---|
| 730nm | Excellent | Invisible | High (best for monochrome) |
| 850nm | Good | Faint red glow | High (but may spook fish) |
| 660nm (Red) | Poor (absorbs fast) | Visible to fish | Low (requires bright light) |
